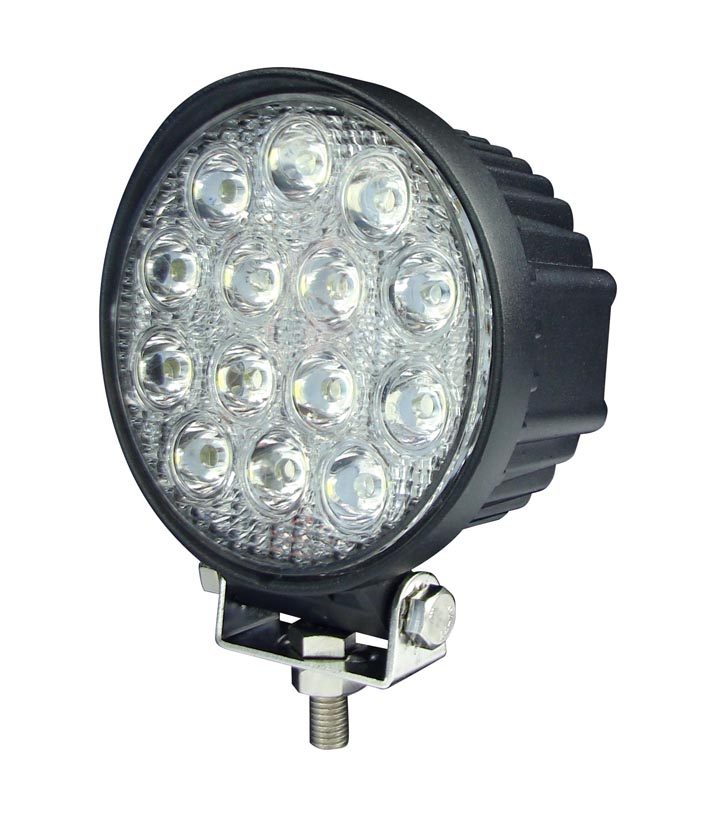

Z6323-14 LED 10-30V 39W Professional LED Working Light

KEY SPECIFICATIONS

- Model Number: Z6323-14 LED
- Product Type: Automotive LED Working Light
- LED Power Output: 39 Watts (LED Power: 39W)
- LED Configuration: 13pcs * 3w High Intensity Epistar LEDs
- Input Voltage Range: 10-30V DC (Operating Voltage: 10-30V DC)
- Current Consumption: 3.0A @ 12V, 1.5A @ 24V
- Color Temperature: 6000K (Pure White)
- Optional Beam Pattern: Flood Beam (60 Degree) or Spot Beam (30 Degree)
- Operational Lifespan: More than 30,000 Hours (30000 hours above life time)
- IP Protection Level: IP67 Certified (Waterproof rate: IP 67)
- Physical Build: Diecast Aluminum Housing, PMMA Lens, Stainless Steel Mounting Bracket
- Dimensions: 128mm * 110mm * 75mm

FEATURES & APPLICATIONS

- 39W Premium Epistar Optics: Configured with 13 high-intensity 3W Epistar LEDs emitting a crisp 6000K light for high-performance safety illumination.
- Dual Beam Angle Capability: Available in a 60-degree Flood beam for expansive workspace coverage or a 30-degree Spot beam for sharp distance vision.
- Multi-Voltage Balanced Load: Runs seamlessly within a 10-30V DC range, pulling 3.0A at 12V or 1.5A at 24V to maximize battery efficiency across fleets.
- IP67 Waterproof & Stainless Build: Built with a rugged diecast aluminum body and an anti-corrosive stainless steel bracket to ensure over 30,000 hours of heavy-duty utility.
